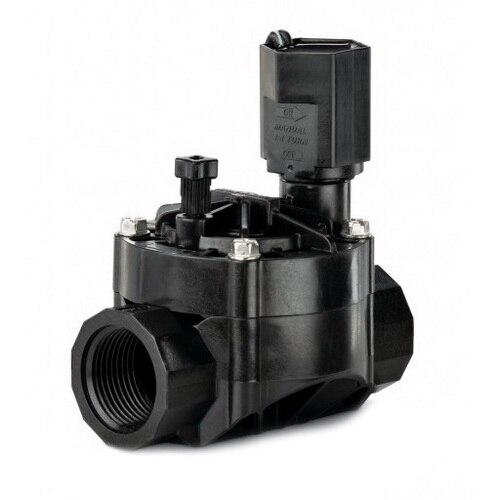

Rain Bird HV Plastic In-Line Valve 1 in. FIPT x FIPT
Not in stock at your selected location. Call us at 1-800-748-3663 for availability.

List price

$19.27 / Each

Log in to see your price
Add to list


Rain Bird HV valves install quickly, service easily, and deliver reliable performance you can count on – all at an affordable price. A more compact design makes it easier to install and allows you to put more valves in a single valve box. Heavy-duty construction and fewer screws simplify maintenance. Its reverse-flow design is engineered to stand up to the diverse and challenging needs of any landscape. Like all Rain Bird valves, HV Valves are built to work with any standard sprinkler timer.

  • 24 VAC, 50/60 hz solenoid ratings
  • Diaphragm locating post for positive installation
  • Four screws for quick access to diaphragm
  • Available in multiple fitting types
  • Internal bleed for spray-free manual operation
  • Eccentric diaphragm for smooth closing, less water hammer
  • External bleed to manually flush system of dirt and debris during installation and system start up
  • Balanced pressure diaphragm for long life
  • Compact design, 2.54 inch spin radius for tight installations (install more valves in a single valve box)
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and stainless steel spring
  • Operates in low-flow and xerigation applications when the RBY filter is installed upstream
  • Double-filtered pilot-flow design for maximum reliability
  • Reverse flow normally closed design
  • Captive multi-drive screws for ease of access and faster bonnet removal

Information and Guides


Item In-Line Valve
Connection Type FIPT x FIPT
Connection Size 1 in.
Body Material Plastic
Regulated No
Brand Name Rain Bird
