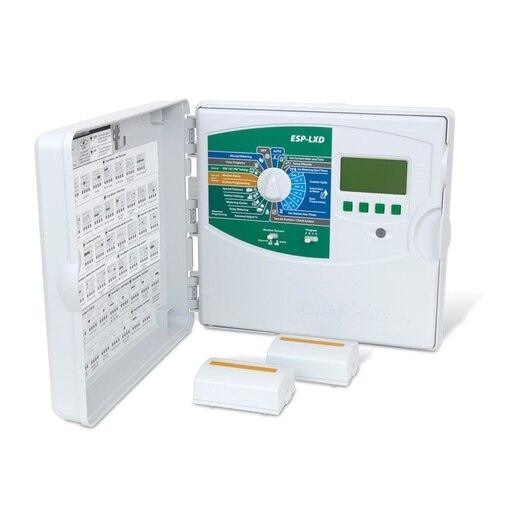

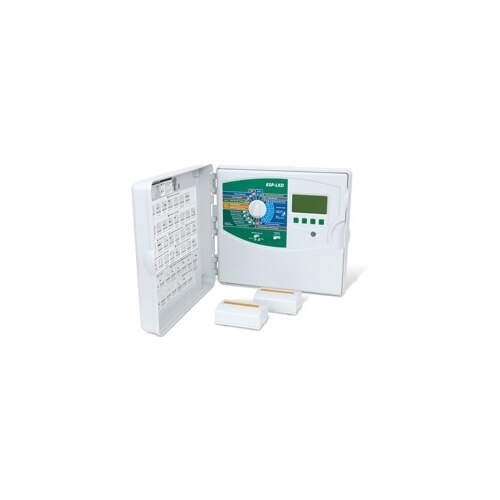

Rain Bird ESP-LXD 50 Station 2-Wire Wall Mount Plastic Controller
ESPLXD
Not in stock at your selected location. Call us at 1-800-748-3663 for availability.

List price

$1,601.00 / Each

Log in to see your price
Add to list


Description

The popular Rain Bird ESP-LX Series commercial controller line now includes a two-wire controller. The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LX Series controllers but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller provides flow sensing and management and 50 station capacity expandable to 200 stations.

  • Four independent programs with capability to overlap
  • Built-in flow management software
  • Power back up lithium coin cell battery maintains time and date while nonvolatile memory maintains the schedule
  • Same easy-to-use programming interface as other ESP series controllers
  • Multi-valve station capacity - up to 2 solenoid valves per station
  • Two-wire decoder-based irrigation reduces wire and simplifies troubleshooting
  • 6 user-selectable languages including English, Spanish, French, Italian, German and Portuguese
  • Requires controller electrical pigtail for power connection
  • 50 station base capacity, expandable to 200 stations using hot-swappable modules
  • Program day cycles -custom days of the week, odd days, even days, cyclical (water every x days), calendar day off, event days off, indoor or outdoor
  • UV-resistant, outdoor-rated plasting locking wall-mountable case

Information and Guides

Specifications

Item Controller
Housing Material Plastic
Mounting Type Wall Mount
Number of Stations 50
Number of Programs 4
Station Type 2-Wire
Indoor/Outdoor Outdoor
Regulated No
Brand Name Rain Bird
