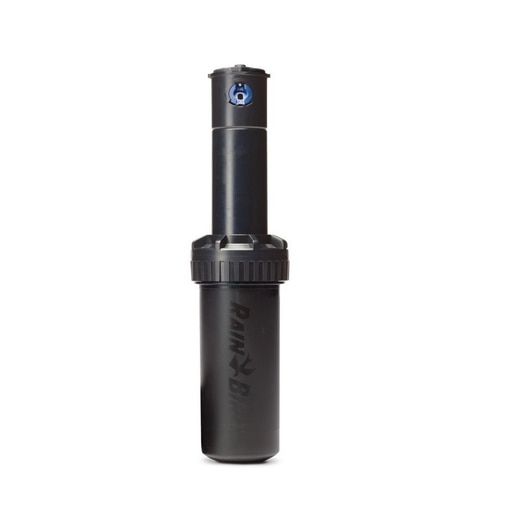

Rain Bird 5004 Plus Full-Circle Rotor 4 in. Riser
5004+FC
Item cannot be added to cart as pricing is not currently available online. Please call the branch at {0}.

Not in stock at your selected location. Call us at {0} for availability.
Add to list


Description

Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

  • Tree of nozzles including 8 Rain Curtain (25 degrees trajectory) and 4 low angle (10 degrees trajectory) provides 25 - 50 ft distance of throw
  • True 4 inch pop-up (measured from the case cover to the nozzle)
  • Optional matched precipitation rate (MPR) nozzles
  • Heavy-duty case
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Large droplets for superior wind resistance
  • 40 - 360 degrees arc rotation and reversing full circle rotation in one
  • Optional pre-installed Rain Curtain, nozzles
  • Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
  • Thicker rubber cover
  • Even distribution over the entire radius
  • Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
  • Slip clutch quickly set the left edge of the 5004 rotor (dry set only)
  • Optimized for mid distance residential and light commercial applications

Specifications

Item Rotor
Connection Type FNPT
Operating Radius 25 - 50 ft.
Inlet Connection 3/4 in. FNPT
Adjustable Rotation Angle 360 Degrees
Pop-Up Height 4 in. Riser
Full-Circle/Part-Circle Full-Circle
Case Material Plastic
Regulated No
Brand Name Rain Bird
