RAIN BIRD

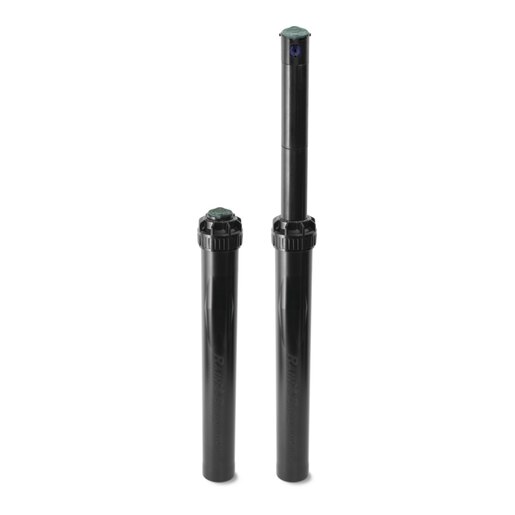

Rain Bird 5006 Plus Part-Circle Rotor 6 in. Riser
5006+PC

List price

$35.25 / Each

Log in to see your price
Out of Stock. Call your branch for options: 770-442-8881.
Description

Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

  • Even distribution over the entire radius
  • Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
  • 40 - 360 degrees arc rotation and reversing full circle rotation in one
  • True 4 inch pop-up (measured from the case cover to the nozzle)
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Optional matched precipitation rate (MPR) nozzles
  • Slip clutch quickly set the left edge of the 5004 rotor (dry set only)
  • Heavy-duty case
  • Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
  • Optimized for mid distance residential and light commercial applications
  • Thicker rubber cover
  • Tree of nozzles including 8 Rain Curtain (25 degrees trajectory) and 4 low angle (10 degrees trajectory) provides 25 - 50 ft distance of throw
  • Optional pre-installed Rain Curtain, nozzles
  • Large droplets for superior wind resistance

Specifications
Item Rotor
Connection Type FNPT
Operating Radius 25 - 50 ft.
Inlet Connection 3/4 in. FNPT
Adjustable Rotation Angle 40 - 360 Degrees
Pop-Up Height 6 in. Riser
Full-Circle/Part-Circle Part-Circle
Case Material Plastic
Regulated No
Brand Name Rain Bird
