Description

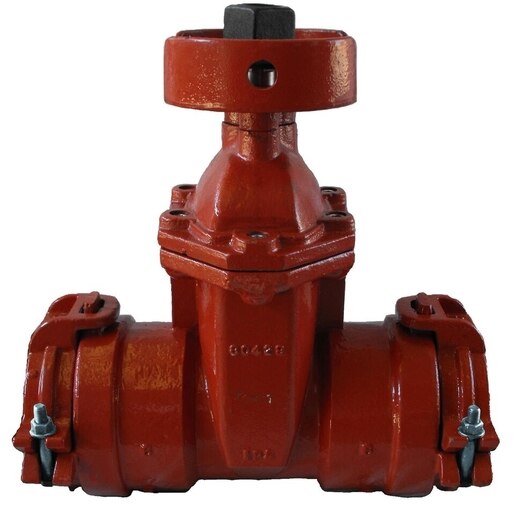

All mainline valves shall be resilient wedge and conform to AWWA C153 standards. Material shall be ductile iron per ASTM A-536, Grade 65-45-12. Epoxy coating on all interior and exterior surfaces shall be fusion bonded epoxy, 12-14 mil thickness. The epoxy coating shall pass 90-Day immersion tests per CSA Z245.20-98. Gate valves shall be available in spigot x bell and bell x bell models to mechanically connect to fittings or plastic pipe. Valve bell end shall be deep bell, gasket and equipped with cast joint restraint clamps to securely fasten to plastic pipe. Restraints shall have blunt cast serrations. Machined threaded restraints will not be allowed. Valves shall have a shroud around the 2” operating nut to accept IPS PVC sleeve which provides dirt-free access to actuate the valve.
  • Top valve shroud accepts pipe sleeve.
  • Eliminates concrete thrust blocks
  • Fusion-bonded epoxy coating inside and outside.
Specifications
Item
Valve
Connection Type
Bell x Bell
Pressure Rating
350 psi
Connection Size
6 in.
Body Material
Ductile Iron
Regulated
No
Brand Name
Leemco
