Description

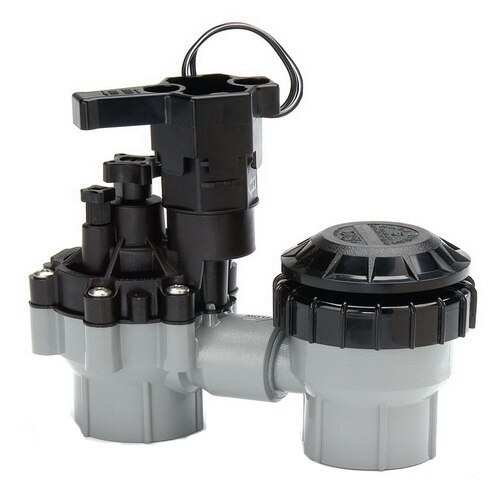

This professional grade anti-siphon valve replaces Rain Bird and other irrigation valves installed above ground with 3/4 in. or 1 in. female threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Anti-Siphon valves should always be installed at least 6 inches above the highest head on the valve line, and should never have another valve installed further down the line from the main valve. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high. A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5) as well as Drip zones when properly installed together with a pressure regulator and filter.
- All of our valves work with any standard sprinkler timer
- For use in cold water only, less than 110 Degree F (43 Degree C)
- Energy efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
- Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
- Combination reliable DVF valve and atmospheric backflow preventer in one unit
- Balanced pressure diaphragm for long life
- External bleed to manually flush system of dirt and debris during installation and system start up
- Internal bleed for spray-free manual operation
- Flow Range: 0.2 GPM to 40 GPM
- Pressure Range: 15-150 PSI
Specifications
Item
Valve
Connection Type
FIPT
Connection Size
3/4 in.
Body Material
PVC
Type
Anti-Siphon
Regulated
No
Brand Name
Rain Bird
Information and Guides
Product Information Sheet
