FEBCO

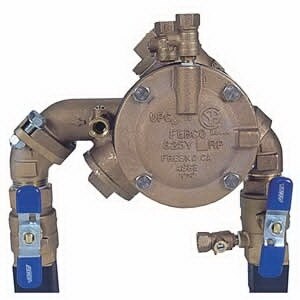

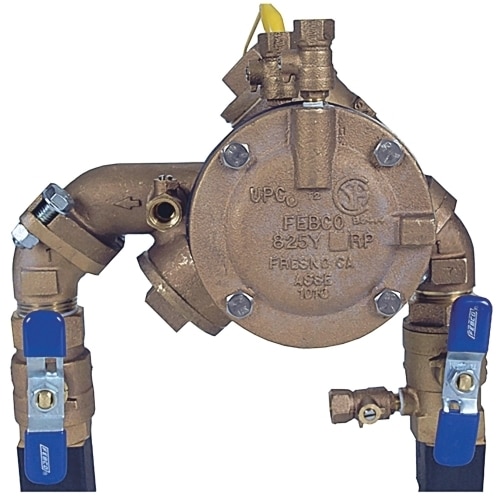

FEBCO 825YA Angle Pattern Reduced Pressure Zone Assembly 2 in. with Ball Valves
825HBV70
Item
825HBV70
Location
Out of Stock. Call your branch for options: 770-442-8881.
List Price

List price

$1,603.34 / Each

Log in to see your price
Your Price


Description

Series 825YA reduced pressure zone assemblies are used to protect against toxic fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feeds, water lines, and other installations requiring the highest level of mechanical protection. End connection is NPT ANSI/ASME B1.20.1

  • Small footprint N-shape design
  • Stainless steel springs
  • Compact design simplifies retrofit
  • Smaller, less costly protective enclosures can be used to provide freeze and vandalism protection due to compact size of valve
  • Nitrile, fabric reinforced diaphragms
  • Integral flanged union connections allow assembly to be removed from the line for freeze protection or maintenance without the danger of spool substitution
  • Provides the highest level of mechanical protection against toxic fluids in water services
  • Eliminates pipe elbows, nipples and unions from the installation
  • Modular relief valve and check valve internal components for ease of maintenance
  • Nitrile seat discs elastomers
  • Replaceable seat rings for longer valve life
  • Low head loss for optimum performance
  • Installation versatility simplifies new and retrofit installations

Specifications
Item Assembly
Series 825YA Angle Pattern
Connection Type Female Thread
Pressure Rating 175 psi
Connection Size 2 in.
Body Material Bronze
Regulated No
Brand Name FEBCO
